Hinges

At ST Skoleinventar, we have different hinge solutions, all depending on the needs of the individual rooms. You can choose between three types of standard hinges:

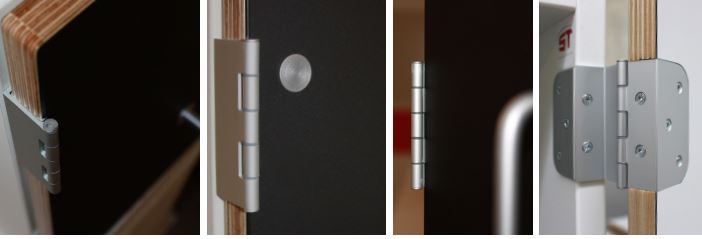

HINGE, HERCULES: THE MARKET’S STRONGEST HINGE

The hinge has EU design protection and a load capacity of 150 kg.

The hinge is the optimal combination of stringent strength requirements with the architect’s and user's desire for an elegant design. The solution is a slim and elegant flap hinge that, despite its flimsy appearance, can handle all day-to-day challenges.

The Danish Technological Institute has tested the load capacity of the hinge, which came out to 150 kg without any bending. The hinge can thus easily handle situations where two or three students are hanging from or sitting on the door. The hinge has an opening angle of 270 degrees and is manufactured in natural anodised extruded aluminium. The hinge is indented into the cover and mounted on the internal side of the carcass. Bevelled edges make the hinge particularly easy to clean. The hinge is mounted with cross-fixed screws, which offers incredible tensile strength.

Read more about the hinge here (DANISH)

Testresult from Teknologisk Institut

Load of 150 kg: See test result here (DANISH)

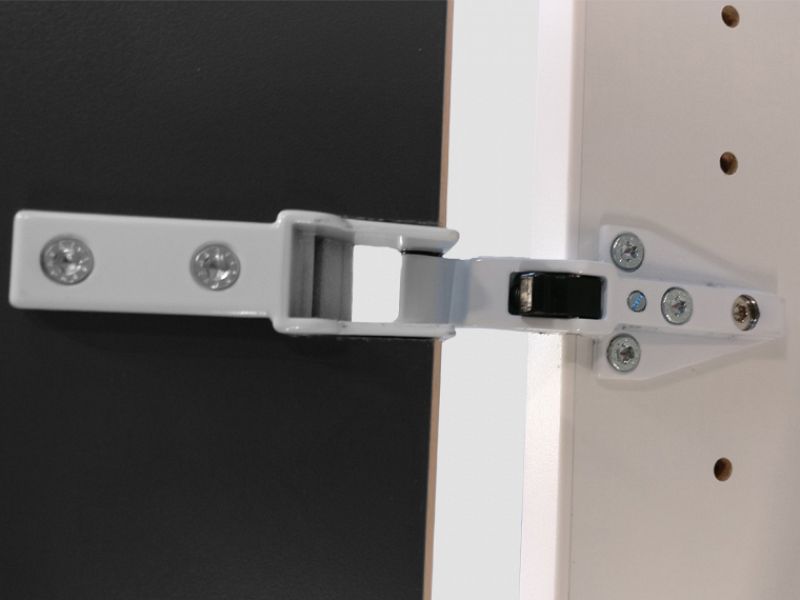

HINGE, ST

A well-tested and classic institution hinge. The hinge is visible from the outside with a 270 degree opening angle. The hinge is tested and approved for a load capacity of at least 45 kg. The hinge is fitted to the routed door. Adjustable screw on carcass side. The hinge has an integrated lock.

HINGE, HIDDEN

Hinge for exterior doors. The hinge has a Bluemotion 110 degree opening angle with soft clos and is easy to mount and adjust. The hinge is tested and approved for a load capacity of 30 kg.

Recommended only for kitchens with limited usage.

OUR CONSULTANTS CAN GUIDE YOU TO CHOOSE THE RIGHT SOLUTION FOR YOU.
